AL 50

AL 50
Premium Casement Series

Heavy-Duty 50mm Frame · 3000mm Shutter Height.

ALUMINIO / Fixed & Casement Systems / 50mm Heavy-DutyAluminio · Fixed & Casement Systems

AL 50

The AL 50 Premium Casement Series is the flagship heavy-duty casement system engineered for tall architectural shutter heights up to 3000mm. Built with a robust 50mm frame depth and heavy-gauge aluminium walls, it accommodates multi-layer security and acoustic glazing up to 28.52mm with outstanding structural wind-load resistance.

Engineered for high-span luxury casement doors and large windows, the ALUMINIO AL 50 delivers remarkable structural strength and acoustic performance. Featuring heavy-duty friction hinges, multi-point compression locks, and support for up to 28.52mm laminated glass, it is the benchmark for high-wind and luxury residential fenestration.

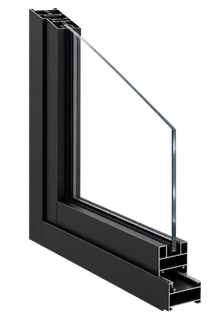

Architectural Profile SchematicCROSS-SECTION
AL 50 architectural profile schematic and glazing detail

Aluminium Profile & Glazing Detail

Engineering & Technical Data

System Specifications

Verified technical parameters, glazing capacities, sizing limits, and architectural application profiles for the Aluminio AL 50 system.

Opening TypeHeavy-Duty Casement Doors & High-Span Windows
Module Depth50 mm Heavy-Gauge System
Available ConfigurationsHeavy-Duty Side-Hung Doors, Top-Hung & Large Fixed Modules
Maximum Shutter HeightUp to 3000 mm (3.0 m)
Fixed Glazing SpanUp to 2400 mm × 2400 mm
Glass ThicknessUp to 28.52 mm Acoustic Laminated & Insulated DGU
Hardware & HingesHeavy-Duty Friction Hinges & 3D Adjustable Door Hardware
Locking SystemConcealed Perimeter Multi-Point Compression Locking
Insect ScreenIntegrated Built-In Insect Protection Mesh System
Colour OptionsPremium Architectural Finishes & Bespoke RAL Powder Coating
Product Applications

Recommended Architectural Use Cases

01Grand Entrance & Balcony Casement Doors
02Tall Living Room Architectural Windows
03High Wind-Load Facade Casement Openings
04Acoustically Sensitive Master Suites & Offices
Bespoke Architectural Fabrication

All Shiva Glass Aluminio architectural systems are precision-fabricated to exact site dimensions with high-grade extruded alloys, multi-point locking hardware, and premium powder-coated or anodized architectural finishes.

SITE MEASURED
